 YEAR: 1914
 COMPANY: British Tabulating Machine Company, Limited
 COUNTRY: England
 IN OUR COLLECTION: Yes
Click here for further information on our rarity scale RARITY: Exceedingly Rare Information on the rarity of this item is unknown.

Type 001 Keypunch, British Tabulating Machine Company, Ltd.

A view of the vintage Type 001 Keypunch, British Tabulating Machine Company, Ltd. an important part of computer history

The machine was hand operated and the process of pressing a key to punch a hole in the card would also advance the card one column. In 1923, IBM introduced an electically powered keypunch. Punching the holes in the card was not a quick process. The holepunch operated by sliding the card right to left underthe keypad and the holes were punched by the operator. However, the card had to be loaded from the left side of the keypad and slid under the keypad to the right where it fit snugly against a metal stop and under a round metal guide (see images). Then the left end of the card was clipped under the card guide and the operator would begin punching.

The keypad had total of 14 keys. The topmost key (on our machine the topmost key is missing the hard rubber inset), would allow the card to slide freely from right to left so that it could be removed from the hole punch. It would be the key you pressed when you were done punching holes. The second key from the top (on our machine it is marked with an "8") would advance the card one column without punching a hole, so it was used when the operator wanted to skip a column. The remaining 12 keys were used to punch holes.

Of these 12, the top three keys (on this machine they are keys "11", "10" and "0") punched above the normal area. We do not know what they were used for. (See below where Michael White has kindly explained how these keys were used in combination with other keys.)

The last nine keys were the heart of the hole punch and the wear and tear on the hard rubber tops of these keys indicated their considerble use. These keys were ordered from the top left key (#1) to the bottom right key (#12). You can follow the order in closeup images of the keypad...#1 to #2 to #3 moved from left to right on a slight downward angle, and then continued with #4, #5, #6 on the second row.

Each key was divided into four parts; the top left were the numbers, the top right were the letters "A" through "I", the bottom left were the letters "J" through "" and the bottom right were the letters "S" through "Z". Key #1 did not have a bottom right letter (otherwise we would have ended up with 27 letters!).

The manufacturer's tag indicates that this is machine #60402. We assume this is the serial number of this machine and not a model number. There is a marking under the machine with the number 918876. We do not know what the second number is for.

How old is this mechanical keypunch?

We are not sure when this keypunch was originally manufactured. We believe it to be between 1909 and 1919. We base that belief on the following clues from the nameplate on the keypunch. It wasn't until 1908 that Hollerith's Tabulating Machine Company gave an exclusive license to a company called Tabular Limited. The Tabular Limited changed its name to the British Tabulating Machine Company Limited in 1909. Since the nameplate lists the "British Tabulating Machine Co. Ltd." then it must have been made after 1909. BTM moved from Southhampton Row, London to Letchworth, Hertfordshire in 1920. Since the nameplate gives the address as Victoria House in London we can surmise that this keypunch was made before 1920. If you choose the midpoint of that time-span, it would place the keypunch at 1915.

If you have any information on this keypunch, please contact us.


Related Items
      Related Item 1: Keypunch Type 001


Viewer Stories & Comments
   Judith Taylor     Peterborough, England     January 31, 2015

       I own a HOLLERITH punch card machine. the address on the machine is 17 Park Lane London W1. I used one of these in 1969 when I worked at British Rail.

   Michael White     Hythe, UK     December 09, 2013

       Forgot to mention. for a UK spec punch the 10 and 11 keys were of course also used for pre-decimalisation currency of 10 and 11 pence. (12 pence to 1 shilling)

   Michael White     Hythe, UK     December 09, 2013

       Just read your description of a card punch, noted the section on usage of keys. The keys "11", "10", and "0" were used in combination with other numeric keys to provide alphabetical characters and full stops, commas etc. No more than 3 keys could be used at the same time. Initially BTM punches used what was known as "2 zone alpha", it was then changed to "3 zone alpha". I worked with a number of Tabulator systems in the 1950s for a few years before progressing to computers.






Copyright © 2019 by Early Computers Project, All Rights Reserved.



IMAGES
Click on any of the images below to see the slideshow.

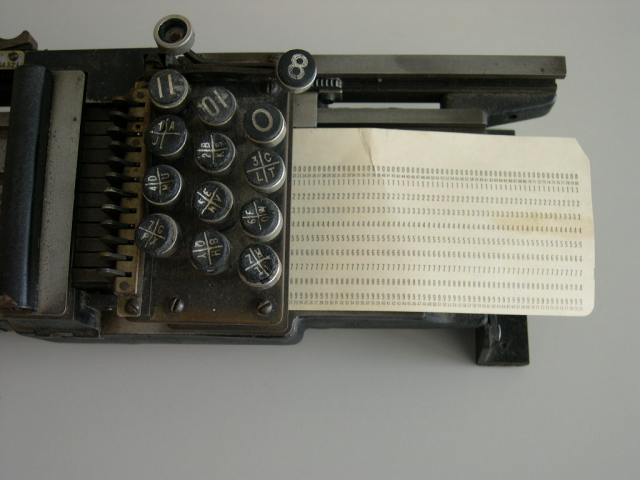

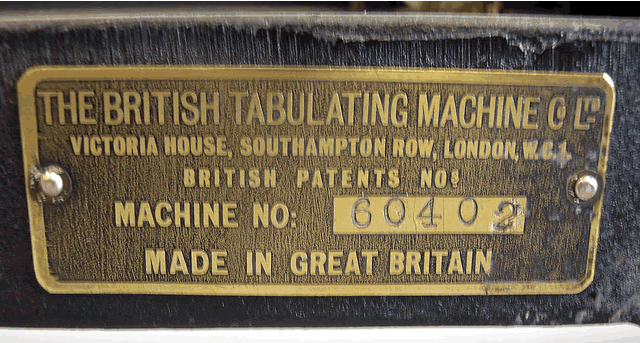

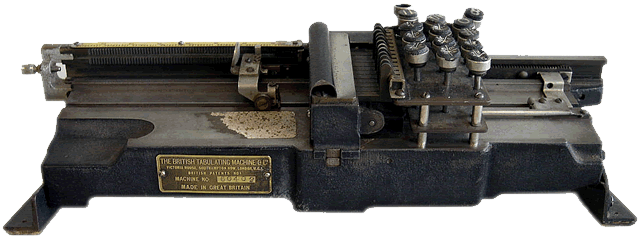

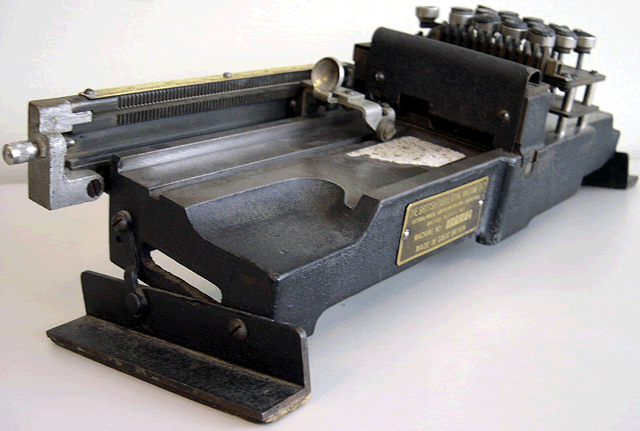

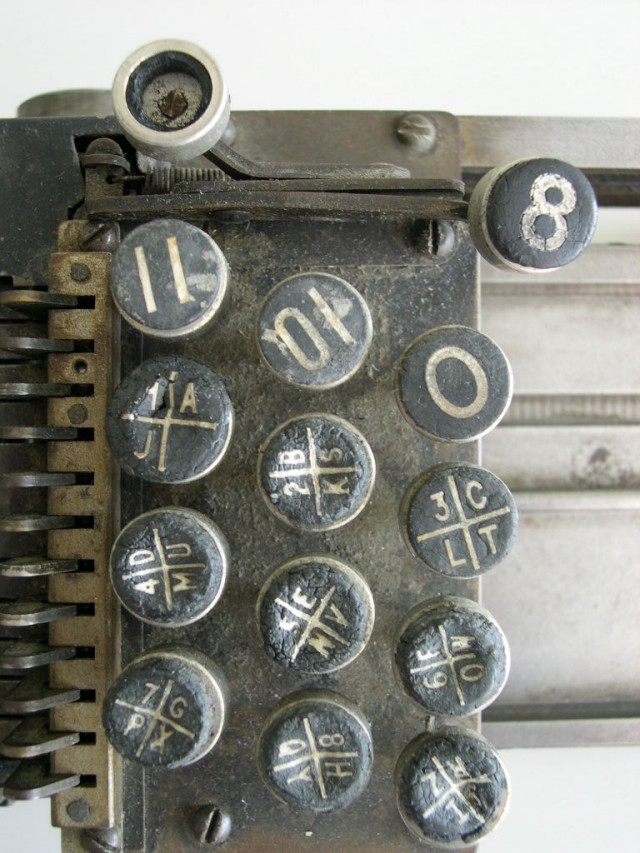

front view of the British Tabulating Machine Company Type 001 mechanical keypunch (card punch). This rare keypunch was an important part of computer history. Front view of the British Tabulating Machine Company Type 001 mechanical keypunch (card punch); notice the angle of the keypunch.  This would allow a more comfortable hand position for the keypunch operator. This keypunch was an important part of computer history. Closeup of the manufacturer's tag showing serial number of this British Tabulating Machine Company Type 001 mechanical keypunch (card punch). This manufacturer's nameplate on this rare keypunch helps us date the keypunch and place it in the timeline of computer history. Closeup of the keypad of the British Tabulating Machine Company Type 001 mechanical keypunch (card punch); note how each key has four sections. This rare keypunch was an important part of computer history. Is this how to load a card into the British Tabulating Machine Company's Type 001 mechanical keypunch (card punch)?  NO, NO, NO!! Cards should be loaded from the left and removed from the right once the holes have been punched.
