 YEAR: 1960
 ITEM: Peripheral Device
 COMPANY: Heath Company
RARITY: Not rare   Click here for further information on our rarity scale Information on the rarity of this item is unknown.

Heathkit DC Oscilloscope

A view of the vintage Heathkit DC Oscilloscope an important part of computer history
The following is taken from the Heathkit Assembly manual. "This Model IO-10 Oscilloscope was designed as a small compact instrument containing identical DC coupled vertical and horizontal amplifiers. DC coupling in the amplifier channels of the IO-10 Oscilloscope allows it to be used with low frequency phenomena from over 200 kc down to DC. The small physical size of the IO-10 tends to alleviate workshop congestion and permits the oscilloscope to be moved about with ease. Also the negligible phase shift between the vertical and horizontal amplifiers makes the IO-10 ideal for specialized uses such as computer read-out."

Because of it's ability to be used as a computer read-out, this model was a popular choice to use with the Heathkit EC-1 analog computer. As with many analog computer, the EC-1 was equipped with a rudimentary voltage meter. The addition of the oscilloscope allowed for a much greater variety of of output.

Nowadays, we are used to seeing the computer monitor & speakers as our "read-out" and they supply us with text, images, movies and sound. In the days of the analog computers, the outputs consisted of voltage meters, oscilloscopes and graphing machines.

Related Items
      Related Item 1: Heathkit DC Oscilloscope Manual

Copyright © 2023 by Early Computers Project, All Rights Reserved.

Click on any of the images below to see the slideshow.

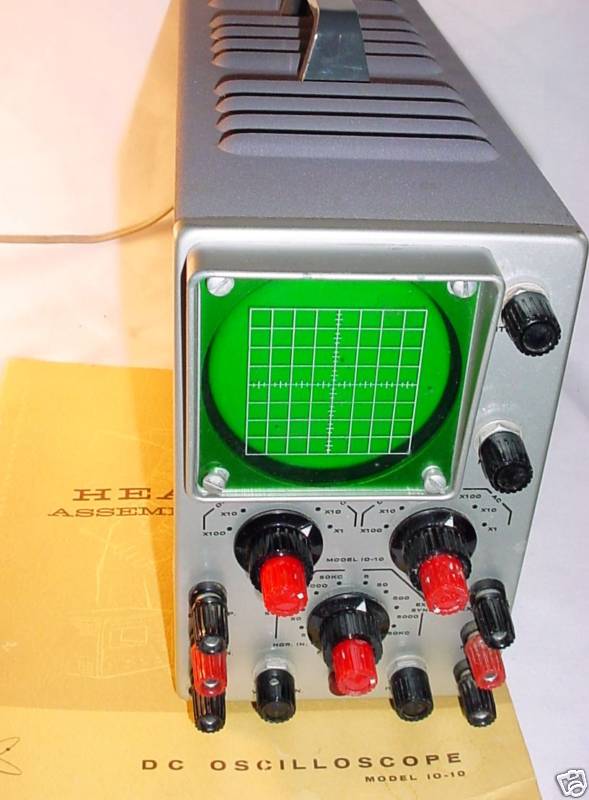

Front view of the oscilloscope.
