 YEAR: 1963
 ITEM: Manual/User's Guide
 PUBLISHER: Electronic Associates Inc.
RARITY: Not rare   Click here for further information on our rarity scale Information on the rarity of this item is unknown.

EAI Time Base Module Model 12.848 (1110 Variplotter© System) Manual

A view of the vintage EAI Time Base Module Model 12.848 (1110 Variplotter© System) Manual an important part of computer history
In addition to manufacturing analog computers such at the PACE TR-48, Electronic Associates Inc., (EAI) also manufactured output devices on which the user could read the results of their computation. Most analog computers of this era displayed the results on a simple voltage meter. However, you could also use an ocilliscope or a plotter. You can think of the plotter as the direct ancestor of the printer! You have probably seen simple versions of the plotter on television...the pen moving side to side on a long strip of paper during a lie detector test or recording the activing of an earthquake. See related material below for an example of a very simple plotter.

EAI manufactured the "1110 Variplotter" for which the module described in this manual was inteneded. See below for information on the TR-48 computer to which the Variplotter could have been connected.

This manual is titled Time Base Module model 12.848 (1110 Variplotter© System), publication number R800 7004 01. This version was printed in July 1964 but the document is dated from 1963.

Related Items
      Related Item 1: Heath Servo-Recorder

      Related Item 2: PACE TR-48

Copyright © 2023 by Early Computers Project, All Rights Reserved.

Click on any of the images below to see the slideshow.

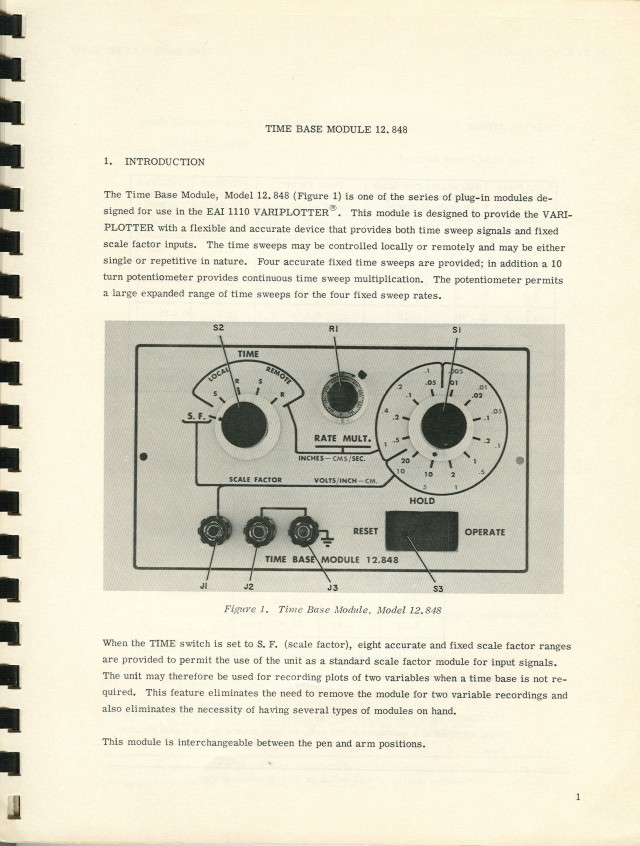

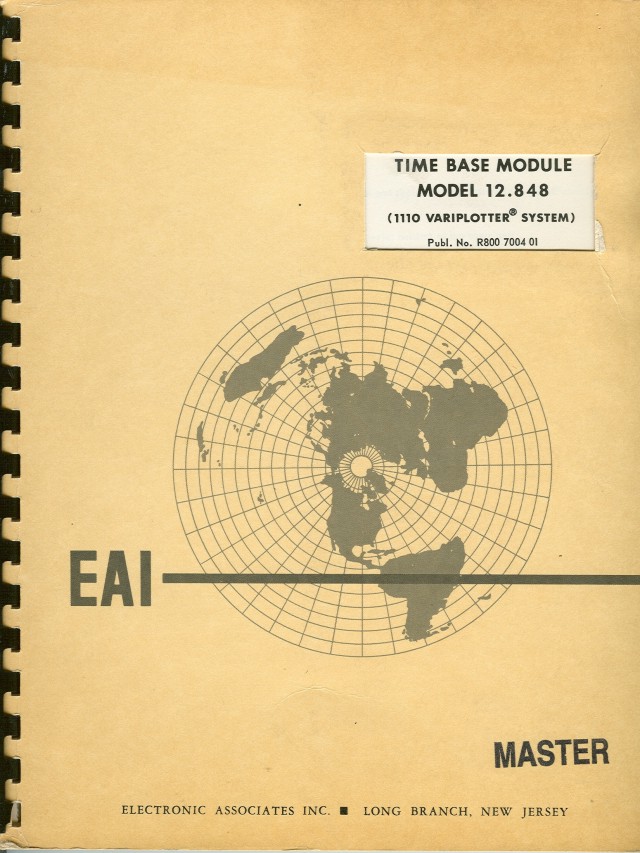

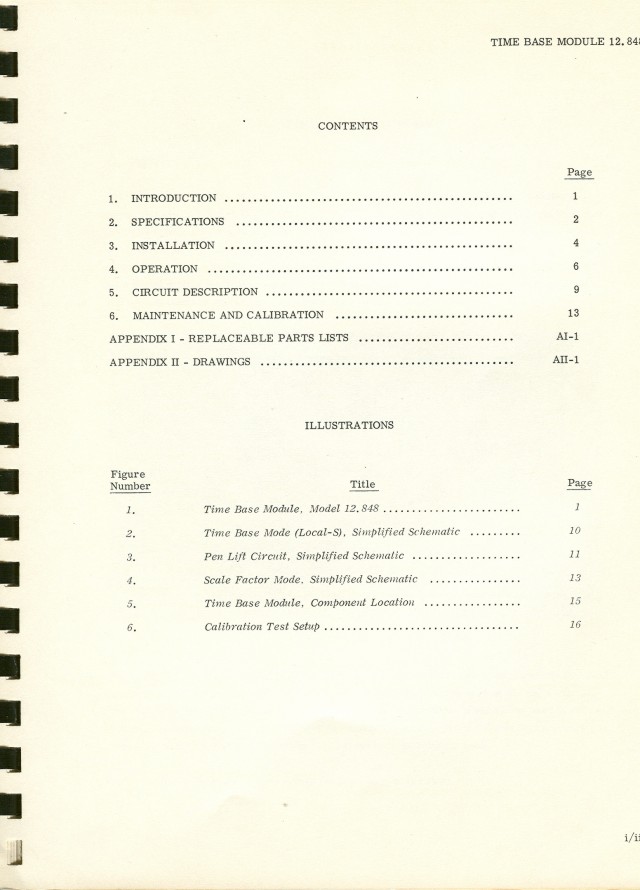

Cover of the manual for this module. Table of contents for this manual. Introduction and description of the Time Base module.
